CY7C4275V - 32K/64K x 18 Low Voltage Deep Sync FIFOs

Datasheet Summary

Features

3.3 V operation for low power consumption and easy integration into low voltage systems.
High speed, low power, first-in first-out (FIFO) memories.
8K × 18 (CY7C4255V).
32K × 18 (CY7C4275V).
64K × 18 (CY7C4285V).
0.35 micron CMOS for optimum speed and power.
High speed 100 MHz operation (10 ns read/write cycle times).
Low power.
ICC = 30 mA.
ISB = 4 mA.
Fully asynchronous and simultaneous read and write operation.
Empty, Full, Half Ful.

Datasheet Details

Part number	CY7C4275V
Manufacturer	Cypress Semiconductor
File Size	406.73 KB
Description	32K/64K x 18 Low Voltage Deep Sync FIFOs
Datasheet	CY7C4275V Datasheet

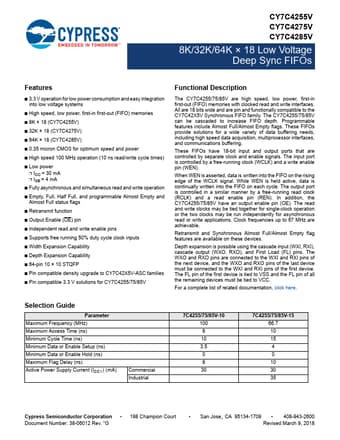

Additional preview pages of the CY7C4275V datasheet.

📁 Similar Datasheet

CY7C4221 - 1 K / 2 K x 9 Synchronous FIFOs (Cypress)

CY7C4231 - 1 K / 2 K x 9 Synchronous FIFOs (Cypress)

CY7C425 - 256/512/1K/2K/4K x 9 Asynchronous FIFO (Cypress)

CY7C4281 - 64K/128K x 9 Deep Sync FIFOs (Cypress )

CY7C429 - 256/512/1K/2K/4K x 9 Asynchronous FIFO (Cypress)

CY7C408A - 64 x 8 Cascadable FIFO (Cypress)

CY7C409A - 64 x 9 Cascadable FIFO (Cypress)

CY7C419 - 256/512/1K/2K/4K x 9 Asynchronous FIFO (Cypress)

CY7C433 - 256/512/1K/2K/4K x 9 Asynchronous FIFO (Cypress)

CY7C441 - Clocked 512 x 9 / 2K x 9 FIFOs (Cypress)

Full PDF Text Transcription

Click to expand full text

CY7C4255V CY7C4275V CY7C4285V 8K/32K/64K × 18 Low Voltage Deep Sync FIFOs 8K/32K/64K × 18 Low Voltage Deep Sync FIFOs Features ■ 3.3 V operation for low power consumption and easy integration into low voltage systems ■ High speed, low power, first-in first-out (FIFO) memories ■ 8K × 18 (CY7C4255V) ■ 32K × 18 (CY7C4275V) ■ 64K × 18 (CY7C4285V) ■ 0.
