PRELIMINARY CY8C41123 and CY8C41223 Linear Power PSoC™ Devices 1.0 .

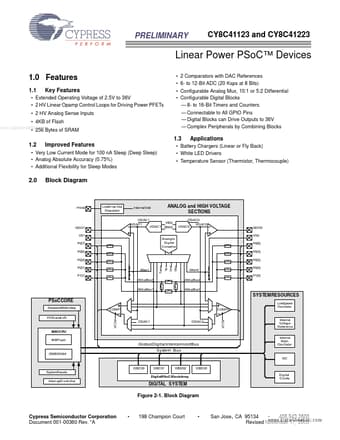

datasheet Preview Page 1 from Datasheet4u.com

CY8C41123_CypressSemiconductor.pdf

CY8C41223 Datasheet Preview — This datasheet PDF includes multiple part numbers: CY8C41223, CY8C41123. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

CY8C41223, CY8C41123

Manufacturer:

Cypress Semiconductor

File Size:

892.35 KB

Description:

Linear Power Devices

Note:

This datasheet PDF includes multiple part numbers: CY8C41223, CY8C41123.
Please refer to the document for exact specifications by model.

Features

* 1.1 Key Features
* Extended Operating Voltage of 2.5V to 36V
* 2 HV Linear Opamp Control Loops for Driving Power PFETs
* 2 HV Analog Sense Inputs
* 4KB of Flash www. DataSheet4U. com
* 256 Bytes of SRAM 2 Comparators wi

Applications

* Battery Chargers (Linear or Fly Back)
* White LED Drivers
* Temperature Sensor (Thermistor, Thermocouple) 2.0 Block Diagram HVdd LowDrop-Out Regulator InternalVdd ANALOG and HIGH VOLTAGE SECTIONS ODAC0 VDAC0 GDO0 VS0 P0[6] P0[4] P0[2] Temp Vss Vref Vbg GDO1 VS1 P0[7
