CY8C4124AZI-443 - Programmable System-on-Chip

Product Overview

Cypress Semiconductor

Datasheet Details

Part number	CY8C4124AZI-443
Manufacturer	Cypress Semiconductor
File Size	847.97 KB
Description	Programmable System-on-Chip
Datasheet	CY8C4124AZI-443 Datasheet
Note	This datasheet PDF includes multiple part numbers: CY8C4124AZI-443, CY8C4124PVI-432. Please refer to the document for exact specifications by model.

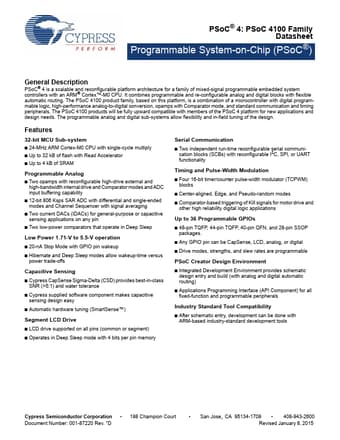

Additional preview pages of the CY8C4124AZI-443 datasheet.

Product details

Description

PSoC® 4 is a scalable and reconfigurable platform architecture for a family of mixed-signal programmable embedded system controllers with an ARM® Cortex™-M0 CPU.

Features

32-bit MCU Sub-system.
24-MHz ARM Cortex-M0 CPU with single-cycle multiply.
Up to 32 kB of flash with Read Accelerator.
Up to 4 kB of SRAM Programmable Analog.
Two opamps with reconfigurable high-drive external and high-bandwidth internal drive and Comparator modes and ADC input buffering capability.
12-bit 806 Ksps SAR ADC with differential and single-ended modes and Channel Sequencer with signal averaging.
Two current DACs (IDACs) for general-purpose or capacitive.
