CY8C4126AXI-S443 - 4100S Plus MCU

Infineon

📥 Download Datasheet

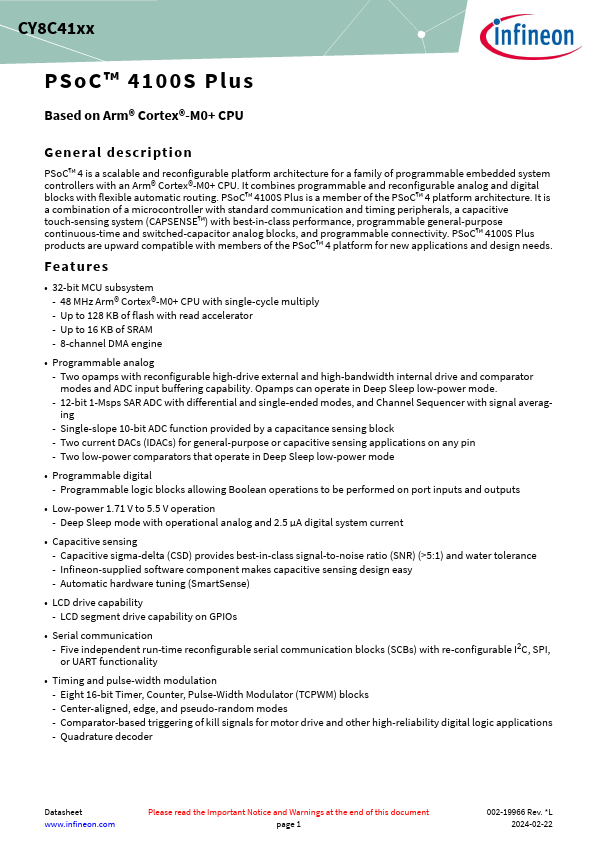

CY8C4126AXI-S443 Datasheet Preview — Preview of CY8C4126AXI-S443 PDF

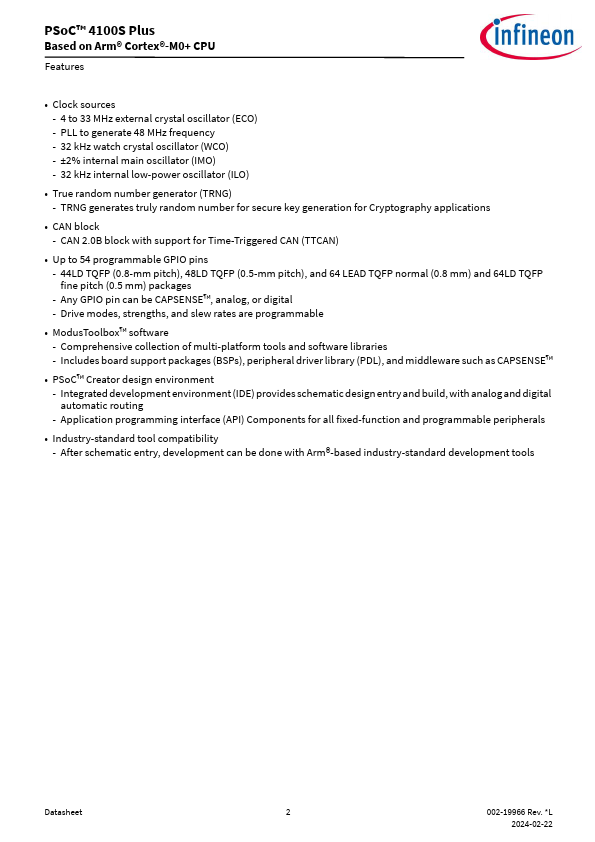

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	CY8C4126AXI-S443
Manufacturer	Infineon ↗
File Size	784.64 KB
Description	4100S Plus MCU
Datasheet	CY8C4126AXI-S443-Infineon.pdf

CY8C4126AXI-S443 Product details

Description

PSoC™ 4 is a scalable and reconfigurable platform architecture for a family of programmable embedded system controllers with an Arm® Cortex®-M0+ CPU.

Features

32-bit MCU subsystem - 48 MHz Arm® Cortex®-M0+ CPU with single-cycle multiply - Up to 128 KB of flash with read accelerator - Up to 16 KB of SRAM - 8-channel DMA engine.
Programmable analog - Two opamps with reconfigurable high-drive external and high-bandwidth internal drive and comparator modes and ADC input buffering capability. Opamps can operate in Deep Sleep low-power mode. - 12-bit 1-Msps SAR ADC with differential and single-ended modes, and Channel Sequencer with signa.
