CYBL10461 Programmable Radio-on-Chip

PRoC BLE is a 32-bit, 48-MHz ARM® Cortex™-M0 BLE solution with CapSense®, 12-bit ADC, four timer, counter, pulse-width modulators (TCPWM), thirty-six GPIOs, two serial communication blocks (SCBs), LCD, and I2S. PRoC BLE includes a royalty-free BLE stack compatible with Bluetooth® 4.1 and provides a .

CYBL10461 Features

* Bluetooth® Smart Connectivity

* Bluetooth 4.1 single-mode device

* 2.4-GHz BLE radio and baseband with integrated balun

* TX output power:

* 18 dBm to +3 dBm

* Received signal strength indicator (RSSI) with 1-dB resolution

* RX sensitivity:

* 92 dBm

* TX current

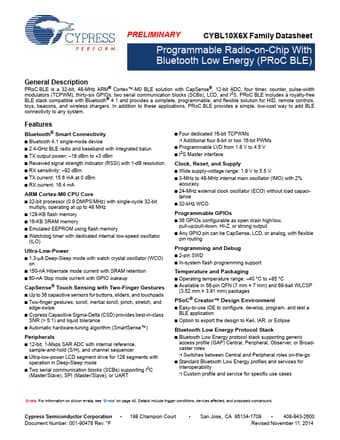

CYBL10161-56LQXI-CypressSemiconductor.pdf

CYBL10461 Datasheet Preview — This datasheet PDF includes multiple part numbers: CYBL10461, CYBL10161-56LQXI. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

CYBL10461, CYBL10161-56LQXI

Manufacturer:

Cypress Semiconductor

File Size:

660.79 KB

Description:

Programmable radio-on-chip.

Note:

This datasheet PDF includes multiple part numbers: CYBL10461, CYBL10161-56LQXI.
Please refer to the document for exact specifications by model.
