CYBL10561 Datasheet - Cypress Semiconductor

Programmable Radio-on-Chip

CYBL10561 Features

* Bluetooth® Smart Connectivity

* Bluetooth 4.1 single-mode device

* 2.4-GHz BLE radio and baseband with integrated balun

* TX output power:

* 18 dBm to +3 dBm

* Received signal strength indicator (RSSI) with 1-dB resolution

* RX sensitivity:

* 92 dBm

* TX current

CYBL10561 General Description

PRoC BLE is a 32-bit, 48-MHz ARM® Cortex™-M0 BLE solution with CapSense®, 12-bit ADC, four timer, counter, pulse-width modulators (TCPWM), thirty-six GPIOs, two serial communication blocks (SCBs), LCD, and I2S. PRoC BLE includes a royalty-free BLE stack compatible with Bluetooth® 4.1 and provides a .

CYBL10561 Datasheet (660.79 KB)

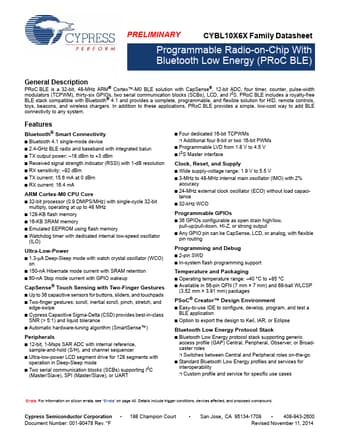

CYBL10561 Datasheet Preview — Preview of CYBL10561 PDF

Datasheet Details

Part number:

CYBL10561

Manufacturer:

Cypress Semiconductor

File Size:

660.79 KB

Description:

Programmable radio-on-chip.
