CYU01M16ZCC 16-Mbit (1M x 16) Pseudo Static RAM

CYU01M16ZCC Description

PRELIMINARY CYU01M16ZCC MoBL3™ 16-Mbit (1M x 16) Pseudo Static RAM .
of read and write modes.

CYU01M16ZCC Features

* Wide voltage range: 2.2V
* 3.6V
* Access Time: 70 ns
* Ultra-low active power
* Typical active current: 3 mA @ f = 1 MHz
* Typical active current: 18 mA @ f = fmax
* Ultra low standby power
* 16-word Page Mode
* Automatic power-

CYU01M16ZCC Applications

* such as cellular telephones. The device Logic Block Diagram A8 A9 A10 DATA IN DRIVERS A11 A12 A13 A14 A15 A16 A17 A18 A19 ROW DECODER 1M × 16 RAM Array SENSE AMPS I/O0
* I/O7 I/O8
* I/O15 COLUMN DECODER BHE WE A6 A5 A4 A3 A2 A1 A0 A7 CE OE BLE Refresh/Power-down Circuit Powe

📥 Download Datasheet

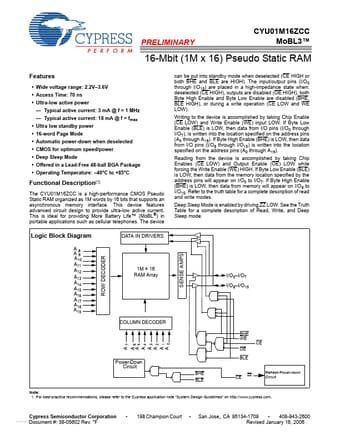

Preview of CYU01M16ZCC PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CYU01M16ZCC
Manufacturer
Cypress Semiconductor
File Size
522.53 KB
Datasheet
CYU01M16ZCC_CypressSemiconductor.pdf
Description
16-Mbit (1M x 16) Pseudo Static RAM
