FM24CL04B - 4-Kbit (512 x 8) Serial (I2C) F-RAM

Product Overview

Cypress Semiconductor

📥 Download Datasheet

FM24CL04B 4-Kbit (512 x 8) Serial (I2C) F-RAM by Cypress Semiconductor - Datasheet Preview — Datasheet preview – FM24CL04B

Datasheet Details

Part number	FM24CL04B
Manufacturer	Cypress Semiconductor
File Size	454.46 KB
Description	4-Kbit (512 x 8) Serial (I2C) F-RAM
Datasheet	FM24CL04B Datasheet

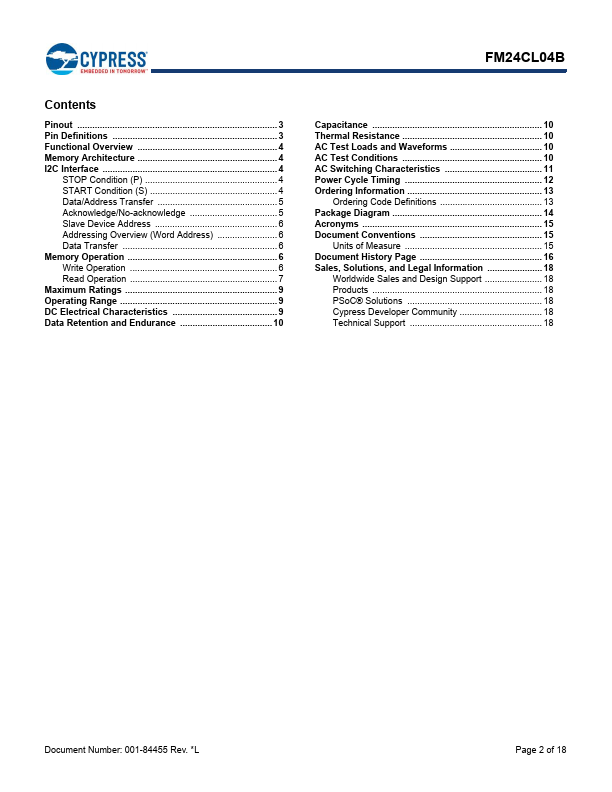

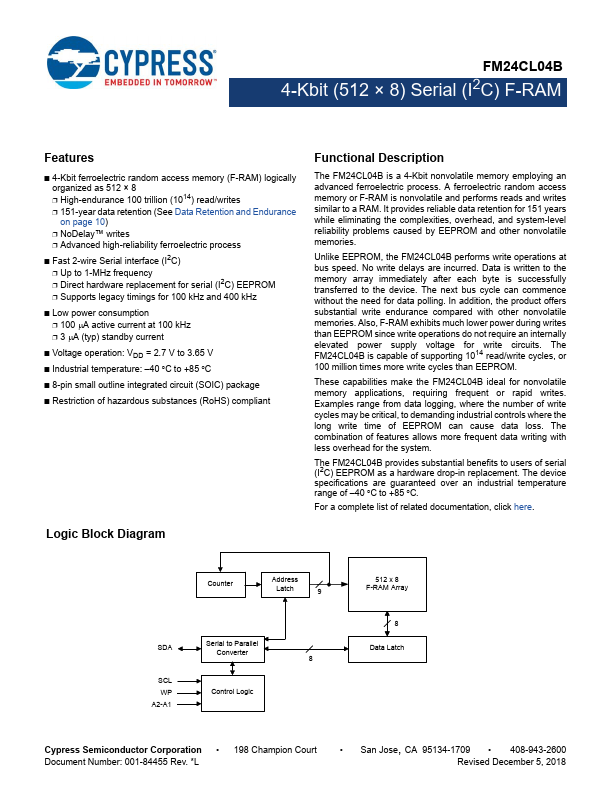

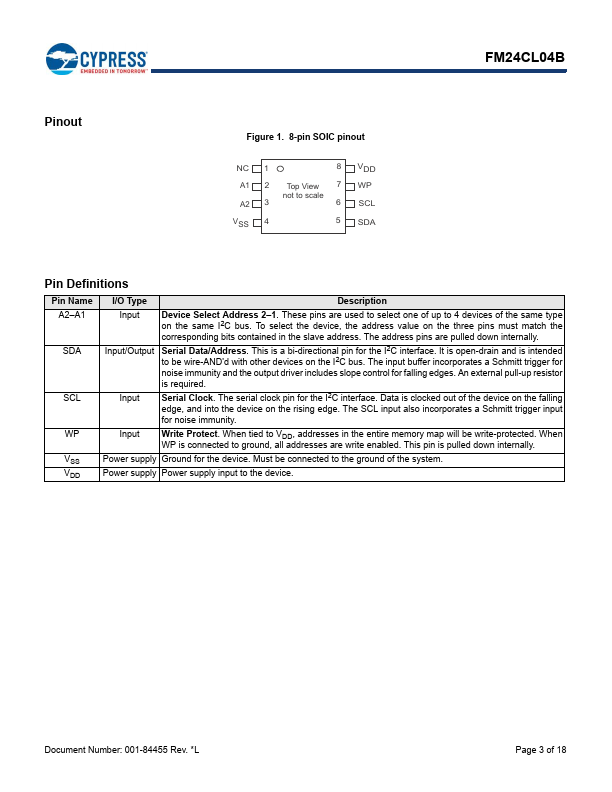

Additional preview pages of the FM24CL04B datasheet.

Product details

Description

The FM24CL04B is a 4-Kbit nonvolatile memory employing an advanced ferroelectric process.

Features

4-Kbit ferroelectric random access memory (F-RAM) logically organized as 512 × 8.
High-endurance 100 trillion (1014) read/writes.
151-year data retention (See Data Retention and Endurance on page 10).
NoDelay™ writes.
Advanced high-reliability ferroelectric process.
Fast 2-wire Serial interface (I2C).
Up to 1-MHz frequency.
Direct hardware replacement for serial (I2C) EEPROM.
Supports legacy timings for 100 kHz and 400 kHz.
Low power consumption.
