FM24CL16 - 16Kb FRAM Serial 3V Memory

Product Overview

📥 Download Datasheet

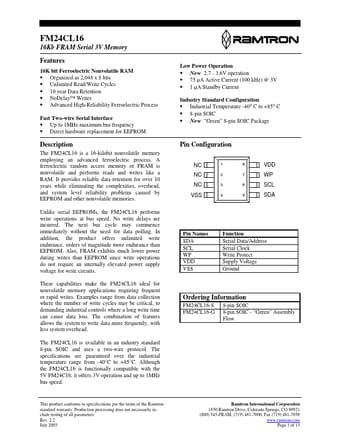

FM24CL16 16Kb FRAM Serial 3V Memory by ETC - Datasheet Preview — Datasheet preview – FM24CL16

Datasheet Details

Part number	FM24CL16
Manufacturer	ETC
File Size	90.21 KB
Description	16Kb FRAM Serial 3V Memory
Datasheet	FM24CL16 Datasheet
Additional preview pages of the FM24CL16 datasheet.

Product details

Description

The FM24CL16 is a 16-kilobit nonvolatile memory employing an advanced ferroelectric process.

Features

16K bit Ferroelectric Nonvolatile RAM.
Organized as 2,048 x 8 bits.
Unlimited Read/Write Cycles.
10 year Data Retention.
NoDelay™ Writes.
Advanced High-Reliability Ferroelectric Process Fast Two-wire Serial Interface.
Up to 1MHz maximum bus frequency.
Direct hardware replacement for EEPROM Low Power Operation.
New 2.7 - 3.6V operation.
75 µA Active Current (100 kHz) @ 3V.
1 µA Standby Current Industry Stand.
