FM24CL64 - 64Kb 2.7V-3.6V FRAM Serial Memory

Product Overview

📥 Download Datasheet

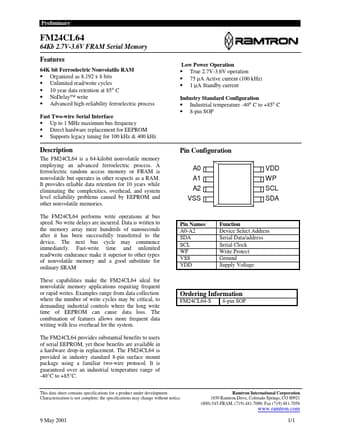

FM24CL64 64Kb 2.7V-3.6V FRAM Serial Memory by ETC - Datasheet Preview — Datasheet preview – FM24CL64

Datasheet Details

Part number	FM24CL64
Manufacturer	ETC
File Size	77.03 KB
Description	64Kb 2.7V-3.6V FRAM Serial Memory
Datasheet	FM24CL64 Datasheet
Additional preview pages of the FM24CL64 datasheet.

Product details

Description

The FM24CL64 is a 64-kilobit nonvolatile memory employing an advanced ferroelectric process.

Features

64K bit Ferroelectric Nonvolatile RAM.
Organized as 8,192 x 8 bits.
Unlimited read/write cycles.
10 year data retention at 85° C.
NoDelay™ write.
Advanced high-reliability ferroelectric process Fast Two-wire Serial Interface.
Up to 1 MHz maximum bus frequency.
Direct hardware replacement for EEPROM.
Supports legacy timing for 100 kHz & 400 kHz Low Power Operation.
True 2.7V-3.6V operation.
75 µA Active curr.
