FM25C160B - 16-Kbit (2K x 8) Serial (SPI) Automotive F-RAM

Product Overview

Cypress Semiconductor

Part number	FM25C160B
Manufacturer	Cypress Semiconductor
File Size	693.96 KB
Description	16-Kbit (2K x 8) Serial (SPI) Automotive F-RAM
Datasheet	FM25C160B Datasheet

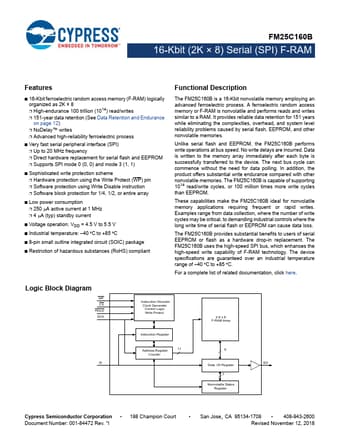

Additional preview pages of the FM25C160B datasheet.

16-Kbit ferroelectric random access memory (F-RAM) logically organized as 2 K × 8.
High-endurance 10 trillion (1013) read/writes.
121-year data retention (See the Data Retention and Endurance table).
NoDelay™ writes.
Advanced high-reliability ferroelectric process.
Very fast serial peripheral interface (SPI).
Up to 15 MHz frequency.
Direct hardware replacement for serial flash and EEPROM.
Supports SPI mode 0 (0,0) and mode 3 (1,1).
Sophisticated.
