FM25C041U

4K-Bit SPI Interface Serial CMOS EEPROM

FM25C041U Features

* I Sequential read of entire array I 4 byte "Page write" mode to minimize total write time per byte I /WP pin and BLOCK WRITE protection to prevent inadvertent programming as well as programming ENABLE and DISABLE opcodes. I /HOLD pin to suspend data transfer I Typical 1µA standby current (ISB) for "

FM25C041U General Description

The FM25C041U is a 4K (4,096) bit serial interface CMOS EEPROM (Electrically Erasable Programmable Read-Only Memory). This device fully conforms to the SPI 4-wire protocol which uses Chip Select (/CS), Clock (SCK), Data-in (SI) and Dataout (SO) pins to synchronously control data transfer between the.

FM25C041U Datasheet (103.53 KB)

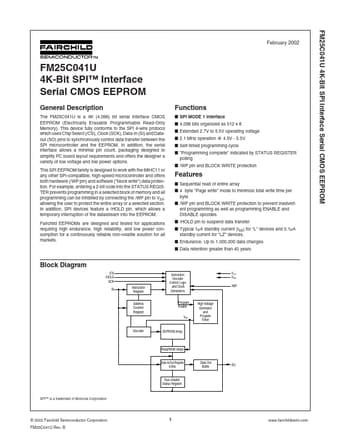

Preview of FM25C041U PDF

Datasheet Details

Part number:

FM25C041U

Manufacturer:

Fairchild Semiconductor

File Size:

103.53 KB

Description:

4k-bit spi interface serial cmos eeprom.
