FM25C160B - 5V F-RAM Memory

Product Overview

Ramtron

Part number	FM25C160B
Manufacturer	Ramtron
File Size	239.08 KB
Description	5V F-RAM Memory
Datasheet	FM25C160B Datasheet

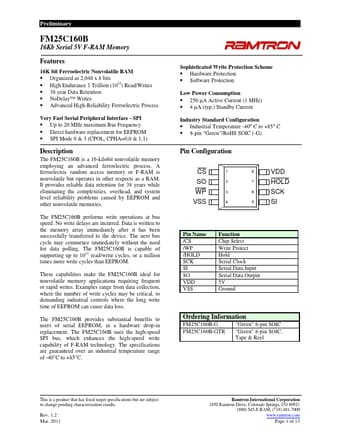

Additional preview pages of the FM25C160B datasheet.

The FM25C160B is a 16-kilobit nonvolatile memory employing an advanced ferroelectric process.

16K bit Ferroelectric Nonvolatile RAM.
Organized as 2,048 x 8 bits.
High Endurance 1 Trillion (1012) Read/Writes.
38 year Data Retention.
NoDelay™ Writes.
Advanced High-Reliability Ferroelectric Process Very Fast Serial Peripheral Interface - SPI.
Up to 20 MHz maximum Bus Frequency.
Direct hardware replacement for EEPROM.
SPI Mode 0 & 3 (CPOL, CPHA=0,0 & 1,1) Sophisticated Write Protection Scheme.
Hardware Protectio.
