FM25CL04 4Kb FRAM Serial 3V Memory

FM25CL04 Description

Preliminary FM25CL04 4Kb FRAM Serial 3V Memory .
The FM25CL04 is a 4-kilobit nonvolatile memory employing an advanced ferroelectric process.

FM25CL04 Features

* 4K bit Ferroelectric Nonvolatile RAM
* Organized as 512 x 8 bits
* Unlimited Read/Write Cycles
* 10 Year Data Retention
* NoDelay™ Writes
* Advanced High-Reliability Ferroelectric Process Very Fast Serial Peripheral Interface - SPI
* Up to 20 MHz Frequ

FM25CL04 Applications

* requiring frequent or rapid writes or low power operation. Examples range from data collection, where the number of write cycles may be critical, to demanding industrial controls where the long write time of EEPROM can cause data loss. The FM25CL04 provides substantial benefits to users of serial EE

📥 Download Datasheet

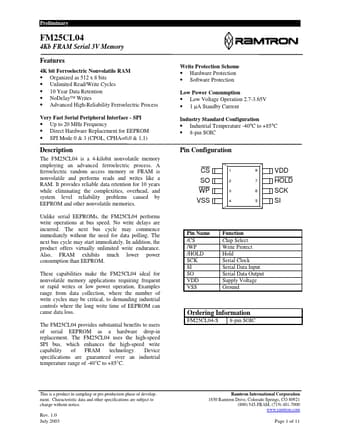

Preview of FM25CL04 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
FM25CL04
Manufacturer
ETC
File Size
98.94 KB
Datasheet
FM25CL04_ETC.pdf
Description
4Kb FRAM Serial 3V Memory
