CY7C1041GN

The CY7C1041GN is 4-Mbit (256K words x 16 bit) Static RAM designed by Cypress.

Product Overview

Cypress

📥 Download Datasheet

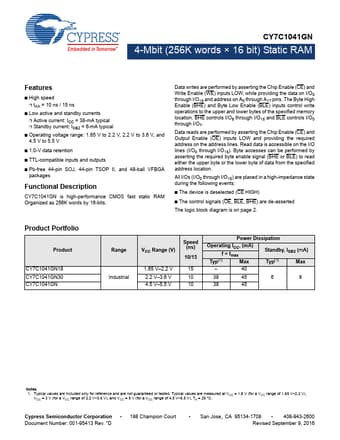

CY7C1041GN 4-Mbit (256K words x 16 bit) Static RAM by Cypress - Datasheet Preview — Datasheet preview – CY7C1041GN

Datasheet Details

Part number	CY7C1041GN
Manufacturer	Cypress
File Size	1.74 MB
Description	4-Mbit (256K words x 16 bit) Static RAM
Datasheet	CY7C1041GN-Cypress.pdf
Additional preview pages of the CY7C1041GN datasheet.

Product details

Description

CY7C1041GN is high-performance CMOS fast static RAM Organized as 256K words by 16-bits.

Features

High speed.
tAA = 10 ns / 15 ns.
Low active and standby currents.
Active current: ICC = 38-mA typical.
Standby current: ISB2 = 6-mA typical.
Operating voltage range: 1.65 V to 2.2 V, 2.2 V to 3.6 V, and 4.5 V to 5.5 V.
1.0-V data retention.
TTL-compatible inputs and outputs.
Pb-free 44-pin SOJ, 44-pin TSOP II, and 48-ball VFBGA packages Functional.
