CYBL11573 Programmable Radio-on-Chip

PRoC™ BLE is a 32-bit, 48-MHz ARM® Cortex™-M0 BLE solution with CapSense®, 12-bit ADC, four timer, counter, pulse-width modulators (TCPWM), Direct memory access (DMA), thirty-six GPIOs, two serial communication blocks (SCBs), LCD, and I2S. PRoC BLE includes a royalty-free BLE stack compatible with B.

CYBL11573 Features

* Bluetooth® Smart Connectivity

* Bluetooth 4.2 single-mode device

* 2.4-GHz BLE radio and baseband with integrated balun

* TX output power:

* 18 dBm to +3 dBm

* Received signal strength indicator (RSSI) with 1-dB resolution

* RX sensitivity:

* 92 dBm

* TX current

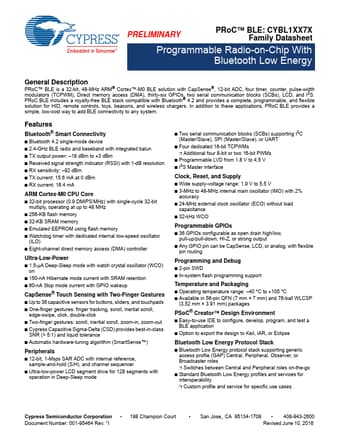

CYBL10573-Cypress.pdf

CYBL11573 Datasheet Preview — This datasheet PDF includes multiple part numbers: CYBL11573, CYBL10573. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

CYBL11573, CYBL10573

Manufacturer:

Cypress

File Size:

3.77 MB

Description:

Programmable radio-on-chip.

Note:

This datasheet PDF includes multiple part numbers: CYBL11573, CYBL10573.
Please refer to the document for exact specifications by model.
