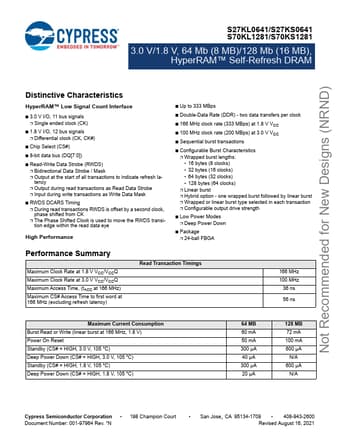

Not Recommended for New Designs (NRND) S27KL0641/S27KS0641 S70KL1281/S70KS1281 3.0 V/1.8 V, 64 Mb (8 MB)/128 Mb (16 MB), HyperRAMâ„¢ Self-Refresh DRAM 3.0 V/1.8 V, 64 Mb (8 MB)/128 Mb (16 MB), HyperRAMâ„¢ Self-Refresh DRAM Distinctive Characteristics HyperRAMâ„¢ Low Signal Count Interface 3.0 V I/O, 11 bus signals Single ended clock (CK) 1.8 V I/O, 12 bus signals Differential clock (CK, CK#) Chip Select (CS#) 8-bit data bus (DQ[7:0]) Read-Write Data Strobe (
