HBN2412S6R - General Purpose NPN Epitaxial Planar Transistors

HBN2412S6R Description

CYStech Electronics Corp.General Purpose NPN Epitaxial Planar Transistors (dual transistors) HBN2412S6R Spec.No.: C202S6R Issued Date : 2003.06.11.

HBN2412S6R Features

* Two BTC2412 chips in a SOT-363R package.
* Mounting possible with SOT-323 automatic mounting machines.
* Transistor elements are independent, eliminating interference.
* Mounting cost and area can be cut in half.
* Low Cob. Typ. Cob=2.0pF
* Complemen

HBN2412S6R Applications

* or systems.
* CYStek assumes no liability for any consequence of customer product design, infringement of patents, or application assistance. HBN2412S6R CYStek Product Specification

📥 Download Datasheet

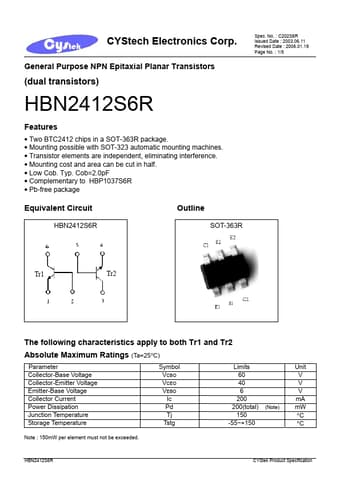

Preview of HBN2412S6R PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HBN2412S6R
Manufacturer
Cystech Electonics
File Size
174.02 KB
Datasheet
HBN2412S6R-CystechElectonics.pdf
Description
General Purpose NPN Epitaxial Planar Transistors
