RB551V-30S2 - Small Signal Schottky Barrier diode

RB551V-30S2 Description

CYStech Electronics Corp.Small Signal Schottky Barrier diode Spec.No.: C301S2 Issued Date : 2004.02.18 Revised Date Page No.: 1/4 RB551V-30S2 De.
The RB551V-30S2 is a silicon Schottky barrier diode fabricated in planar technology, and encapsulated in a small SOD-323 plastic SMD package.

RB551V-30S2 Features

* Small plastic SMD package
* Ultra low VF, VF=0.45 typ. at 0.5A

RB551V-30S2 Applications

* High frequency rectification
* Switching regulators Absolute Maximum Ratings @TA=25℃ Parameters Peak Reverse voltage DC Reverse voltage Mean rectifying current Peak forward surge current Junction Temperature Storage Temperature Symbol VRM VR IO IFSM Tj Tstg Min -40 Max 30 20 0.5 2

📥 Download Datasheet

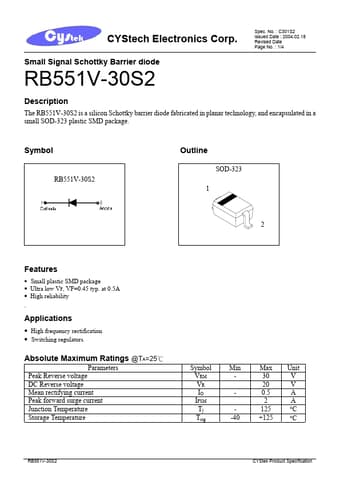

Preview of RB551V-30S2 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RB551V-30S2
Manufacturer
Cystech Electonics
File Size
193.88 KB
Datasheet
RB551V-30S2_CystechElectonics.pdf
Description
Small Signal Schottky Barrier diode
