RB520S-30C2 - Small Signal Schottky diode

Product Overview

Cystech Electonics

📥 Download Datasheet

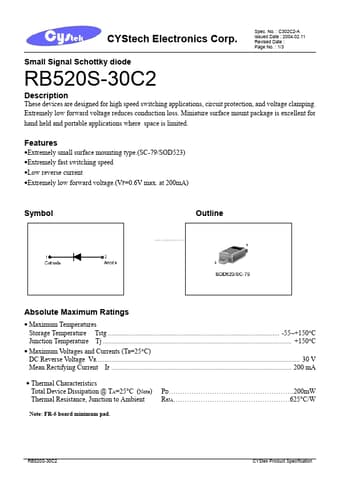

RB520S-30C2 Small Signal Schottky diode by Cystech Electonics - Datasheet Preview — Datasheet preview – RB520S-30C2

Datasheet Details

Part number	RB520S-30C2
Manufacturer	Cystech Electonics
File Size	188.47 KB
Description	Small Signal Schottky diode
Datasheet	RB520S-30C2 Datasheet
Additional preview pages of the RB520S-30C2 datasheet.

Product details

Description

These devices are designed for high speed switching applications, circuit protection, and voltage clamping.

Features

Extremely small surface mounting type. (SC-79/SOD523).
Extremely fast switching speed.
Low reverse current.
Extremely low forward voltage. (VF=0.6V max. at 200mA) Symbol Outline www. DataSheet4U. com Absolute Maximum Ratings.
Maximum Temperatures Storage Temperature Tstg -55~+150°C Junction Temperature Tj +150°C.
Maximum Voltages and Currents (Ta=25°C) DC Reverse Voltage VR 30 V Mean Rectifying Current IF 200 mA.
Thermal Characteris.
