RB520S - 200mA Surface Mount Small Signal Diodes

Product Overview

CITC

📥 Download Datasheet

RB520S 200mA Surface Mount Small Signal Diodes by CITC - Datasheet Preview — Datasheet preview – RB520S

Datasheet Details

Part number	RB520S
Manufacturer	CITC
File Size	76.84 KB
Description	200mA Surface Mount Small Signal Diodes
Datasheet	RB520S Datasheet

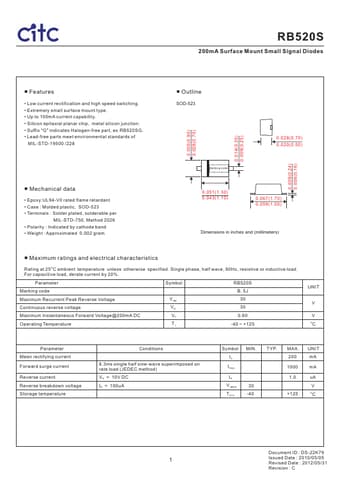

Additional preview pages of the RB520S datasheet.

Product details

Features

s.
Low current rectification and high speed switching.
Extremely small surface mount type.
Up to 100mA current capability.
Silicon epitaxial planar chip, metal silicon junction.
Suffix "G" indicates Halogen-free part, ex. RB520SG.
Lead-free parts meet environmental standards of MIL-STD-19500 /228.
Outline SOD-523 0.028(0.70) 0.020(0.50) 0.035(0.90) 0.028(0.70) 0.014(0.35) 0.009(0.25) 0.009(0.24) 0.006(0.16).
Mechanical data.
