RB520S-30DP - 100mA Schottky Barrier Diode

Product Overview

MCC

📥 Download Datasheet

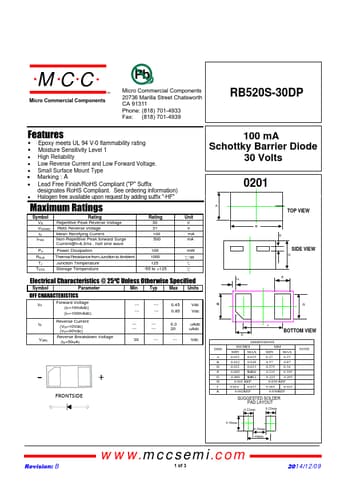

RB520S-30DP 100mA Schottky Barrier Diode by MCC - Datasheet Preview — Datasheet preview – RB520S-30DP

Datasheet Details

Part number	RB520S-30DP
Manufacturer	MCC
File Size	419.49 KB
Description	100mA Schottky Barrier Diode
Datasheet	RB520S-30DP Datasheet
Additional preview pages of the RB520S-30DP datasheet.

Product details

Features

Epoxy meets UL 94 V-0 flammability rating.
Moisture Sensitivity Level 1.
High Reliability.
Low Reverse Current and Low Forward Voltage.
Small Surface Mount Type x Marking : A.
Lead Free Finish/RoHS Compliant ("P" Suffix designates RoHS Compliant. See ordering information).
Halogen free available upon request by adding suffix "-HF" 100 mA Schottky Barrier Diode 30 Volts 0201 Maximum Ratings Symbol VR VR(RMS) IO IFSM Pd RthJA TJ T.
