RB520S-30L2 - Schottky Rectifier

Product Overview

MCC

📥 Download Datasheet

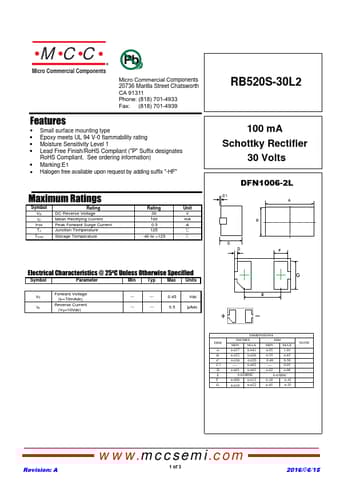

RB520S-30L2 Schottky Rectifier by MCC - Datasheet Preview — Datasheet preview – RB520S-30L2

Datasheet Details

Part number	RB520S-30L2
Manufacturer	MCC
File Size	271.19 KB
Description	Schottky Rectifier
Datasheet	RB520S-30L2 Datasheet
Additional preview pages of the RB520S-30L2 datasheet.

Product details

Features

Small surface mounting type.
Epoxy meets UL 94 V-0 flammability rating.
Moisture Sensitivity Level 1.
Lead Free Finish/RoHS Compliant ("P" Suffix designates RoHS Compliant. See ordering information).
Marking:E1.
Halogen free available upon request by adding suffix "-HF" Maximum Ratings Symbol VR IO IFSM TJ TSTG Rating DC Reverse Voltage Mean Rectifying Current Peak Forward Surge Current Junction Temperature Storage Temperature Rating Un.
