RB520S-30LP - Schottky Rectifier

Product Overview

MCC

📥 Download Datasheet

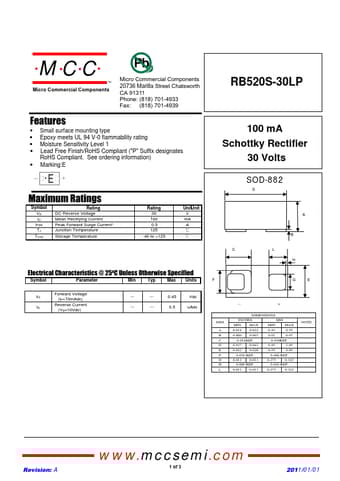

RB520S-30LP Schottky Rectifier by MCC - Datasheet Preview — Datasheet preview – RB520S-30LP

Datasheet Details

Part number	RB520S-30LP
Manufacturer	MCC
File Size	293.42 KB
Description	Schottky Rectifier
Datasheet	RB520S-30LP Datasheet
Additional preview pages of the RB520S-30LP datasheet.

Product details

Features

Small surface mounting type.
Epoxy meets UL 94 V-0 flammability rating.
Moisture Sensitivity Level 1.
Lead Free Finish/RoHS Compliant ("P" Suffix designates RoHS Compliant. See ordering information).
Marking:E Maximum Ratings Symbol VR IO IFSM TJ TSTG Rating DC Reverse Voltage Mean Rectifying Current Peak Forward Surge Current.
Junction Temperature Storage Temperature Rating 30 100 0.5 125 -40 to +125 UnitUnit V mA A к к Electrical Characte.
