RB520D - 100mA Surface Mount Small Signal Diodes

Product Overview

CITC

📥 Download Datasheet

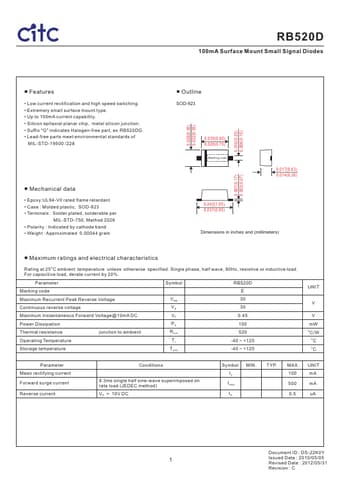

RB520D 100mA Surface Mount Small Signal Diodes by CITC - Datasheet Preview — Datasheet preview – RB520D

Datasheet Details

Part number	RB520D
Manufacturer	CITC
File Size	133.63 KB
Description	100mA Surface Mount Small Signal Diodes
Datasheet	RB520D Datasheet
Additional preview pages of the RB520D datasheet.

Product details

Features

s.
Low current rectification and high speed switching.
Extremely small surface mount type.
Up to 100mA current capability.
Silicon epitaxial planar chip, metal silicon junction.
Suffix "G" indicates Halogen-free part, ex. RB520DG.
Lead-free parts meet environmental standards of MIL-STD-19500 /228.
Mechanical data.
Epoxy:UL94-V0 rated flame retardant.
Case : Molded plastic, SOD-923.
Terminals : Solder plated.
