Datasheet Details

Part number:

DTC124ES3

Manufacturer:

Cystech

File Size:

168.28 KB

Description:

Pnp digital transistors.

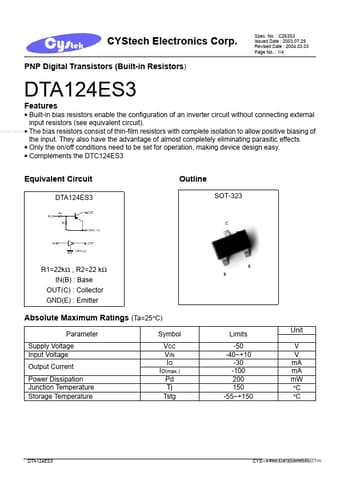

DTC124ES3, PNP Digital Transistors

CYStech Electronics Corp.

PNP Digital Transistors (Built-in Resistors) Spec.

No.

: C263S3 Issued Date : 2003.07.29 Revised Date : 2004.03.03 Page No.

: 1/4 DTA124ES3 Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit).

www.DataSheet4U.com The bias resistors consist of thin-film resistors with complete isolation to allow positive biasing of the input.

They also have the advantage of almo

DTC124ES3 Features

* Equivalent Circuit DTA124ES3 Outline SOT-323 R1=22kΩ , R2=22 kΩ IN(B) : Base OUT(C) : Collector GND(E) : Emitter Absolute Maximum Ratings (Ta=25°C) Parameter Supply Voltage Input Voltage Output Current Power Dissipation Junction Temperature Storage Temperature Symbol VCC VIN IO IO(max.) Pd Tj Ts
