DTC124ESA Digital transistors

DTC124ESA Description

Transistors Digital transistors (built-in resistors) DTC124EE / DTC124EUA / DTC124EKA DTC124ECA / DTC124ESA F.

DTC124ESA Features

* 1) Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit). 2) The bias resistors consist of thinfilm resistors with complete isolation to allow negative biasing of the input. They also have the advantage of almost

📥 Download Datasheet

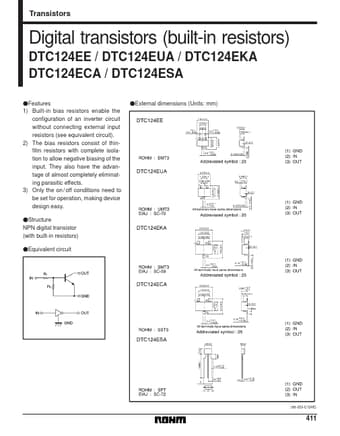

Preview of DTC124ESA PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DTC124ESA
Manufacturer
ROHM ↗
File Size
70.65 KB
Datasheet
DTC124ESA_Rohm.pdf
Description
Digital transistors
