DTC124TE - Digital transistors

Rohm

📥 Download Datasheet

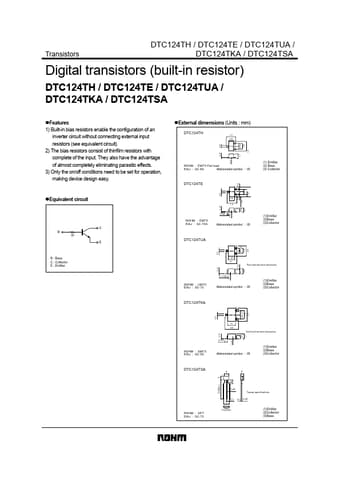

DTC124TE Datasheet Preview — Preview of DTC124TE PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	DTC124TE
Manufacturer	ROHM
File Size	64.48 KB
Description	Digital transistors
Datasheet	DTC124TE_Rohm.pdf

DTC124TE Product details

Features

1) Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit). 2) The bias resistors consist of thinfilm resistors with complete of the input. They also have the advantage of almost completely eliminating parasitic effects. 3) Only the on/off conditions need to be set for operation, making device design easy. !External dimensions (Units : mm) DTC124TH 0.27 1.6 0.85 (1) 0.5 0.5 (3) (2) 1.0 1.6 0.12 0to0.1 0.
