* 1) Built-In Biasing Resistors, R1 = R2 = 22kΩ 2) Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see inner circuit) . 3) Only the on/off conditions need to be set for operation, making the circuit design easy. 4) Complementary P
DTC124EKA
1.76 MB
Digital transistors.

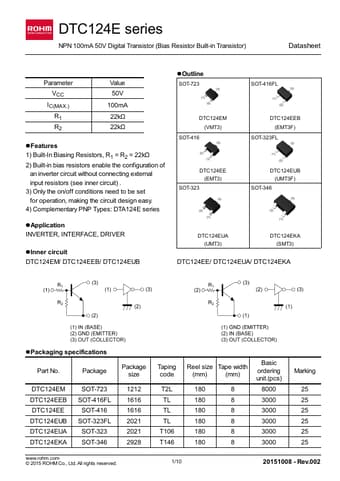

DTC124E series
NPN 100mA 50V Digital Transistor (Bias Resistor Built-in Transistor)
Datasheet
Parameter VCC
IC(MAX.) R1 R2
Value 50V 100mA 22kΩ 22k.
