DTC124TCA NPN 100mA 50V Digital Transistor

DTC124TCA Description

DTC124TCA NPN 100mA 50V Digital Transistor (Bias Resistor Built-in Transistor) Parameter VCEO IC R1 　 Value 50V 100mA 22kΩ 　 l.

DTC124TCA Features

* 1) Built-In Biasing Resistor 2) Built-in bias resistors enable the configuration of 　an inverter circuit without connecting external 　input resistors (see inner circuit) . 3) Only the on/off conditions need to be set 　for operation, making the circuit design easy. 4) Complementary PNP Types: DTA124T

📥 Download Datasheet

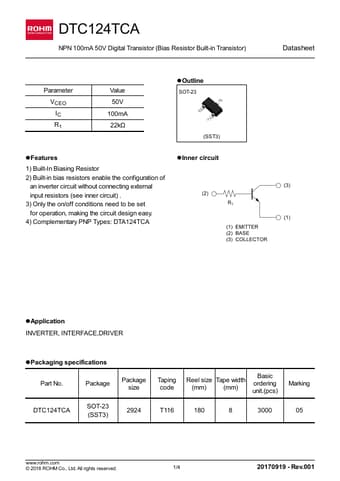

Preview of DTC124TCA PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DTC124TCA
Manufacturer
ROHM ↗
File Size
921.34 KB
Datasheet
DTC124TCA-ROHM.pdf
Description
NPN 100mA 50V Digital Transistor
