BT42008 - 8 mm Character Height LCD Modules

Datasheet Summary

Description

1 VSS GND (0 V) 2 VDD Power Supply (5 V) 3 V0 Supply Voltage (LCD Driver) 4 RS Register Select - LOW = Instruction, High = Data 5 R/W Read / Write LOW = MPU to LCM, HIGH = LCM to MPU Enable 6 E R / W = LOW: Data are taking over at falling edge of E R / W = HIGH: Data can be read at E = 1

DATA MODUL

📥 Download Datasheet

Datasheet Details

Part number	BT42008
Manufacturer	DATA MODUL
File Size	83.08 KB
Description	8 mm Character Height LCD Modules
Datasheet	BT42008 Datasheet
Additional preview pages of the BT42008 datasheet.

📁 Similar Datasheet

BT424 - TTL/ECL-Compatible Video Shift Register (Broktree)
BT401 - DC/DC Converters (ETC)
BT402 - DC/DC Converters (ETC)
BT403 - DC/DC Converters (ETC)
BT404 - DC/DC Converters (ETC)
BT405 - DC/DC Converters (ETC)
BT40A01 - 10/100 Base-T Duad Port Transformer Module (TNK)
BT40N60BNF - Silicon FS Planar IGBT (Huajing Microelectronics)
BT40T60AKF - Insulated gate bipolar transistor (Huajing Microelectronics)
BT40T60ANF - Insulated gate bipolar transistor (Huajing Microelectronics)

Other Datasheets by DATA MODUL

Full PDF Text Transcription

Click to expand full text

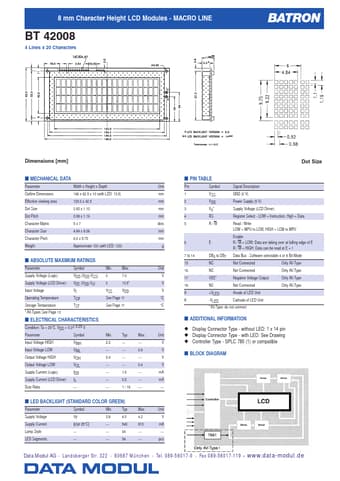

8 mm Character Height LCD Modules - MACRO LINE BT 42008 4 Lines x 20 Characters BATRON Dimensions [mm] Dot Size I MECHANICAL DATA Parameter Width x Height x Depth Outline Dimensions 146 x 62.5 x 10 (with LED: 13.5) Effective viewing area 123.0 x 42.5 Dot Size 0.92 x 1.10 Dot Pitch 0.98 x 1.16 Character Matrix 5x7 Character Size 4.84 x 8.06 Character Pitch 6.0 x 9.75 Weight Approximate 100 (with LED: 120) I ABSOLUTE MAXIMUM RATINGS Parameter Symbol Supply Voltage (Logic) Supply Voltage (LCD Driver) Input Voltage Operating Temperature Storage Temperature * AV-Types See Page 13 VDD (VDD-VSS) VEE (VDD-V0) VI TOP TST I ELECTRICAL CHARACTERISTICS Condition: Ta = 25°C, VDD = 5.0± 0.
