BT40A01 Datasheet - TNK

BT40A01 10/100 Base-T Duad Port Transformer Module

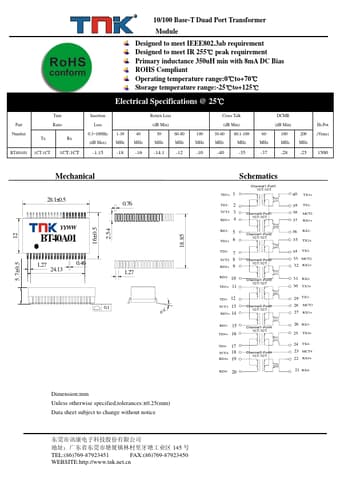

10/100 Base-T Duad Port Transformer Module Designed to meet IEEE802.3ab requirement Designed to meet IR 255℃ peak requirement Primary inductance 350uH min with 8mA DC Bias ROHS Compliant Operating temperature range:0℃to+70℃ Storage temperature range:-25℃to+125℃ Electrical Specifications @ 25℃ Part Number Turn Ratio Tx Rx BT40A01 1CT:1CT 1CT:1CT Insertion Loss 0.3~100Mz (dB Max) -1.15 1-30 MHz -18 Return Loss (dB Min) 40 50 60-80 MHz MHz MHz -16 -14.1 -12 100 MHz -10 Cross Talk .

BT40A01 Datasheet (55.72 KB)

BT40A01 Datasheet Preview — Preview of BT40A01 PDF

Datasheet Details

Part number:

BT40A01

Manufacturer:

TNK

File Size:

55.72 KB

Description:

10/100 base-t duad port transformer module.
