BT40N60BNF Datasheet, IGBT, Huajing Microelectronics

BT40N60BNF Features

  • Igbt l FS Planar Technology, Positive temperature coefficient l Low saturation voltage: VCE(sat), typ = 2.2V @ IC = 40A and TC = 25°C l Extremely enhanced avalanche capability Applications

PDF File Details

Part number:

BT40N60BNF

Manufacturer:

Huajing Microelectronics

File Size:

105.84kb

Download:

📄 Datasheet

Description:

Silicon fs planar igbt. Using HUAJING's proprietary Planar design and advanced FS technology, the 600V FSIGBT offers superior conduction and switching perfo

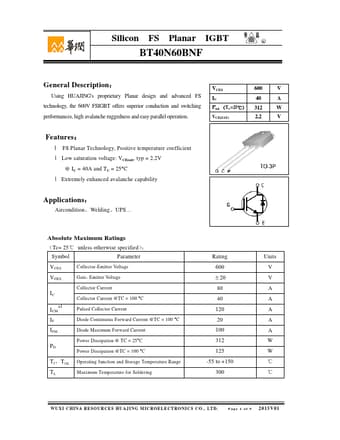

Datasheet Preview: BT40N60BNF 📥 Download PDF (105.84kb)
Page 2 of BT40N60BNF Page 3 of BT40N60BNF

BT40N60BNF Application

  • Applications Aircondition、Welding、UPS… Absolute Maximum Ratings (Tc= 25℃ unless otherwise specified): Symbol Parameter VCES Collector-Emitter
