DAC-HK12BMC-QL, DAC-HK12BGC Datasheet - DATEL

DAC-HK12BMC-QL 12-Bit DAC

INPUTS Resolution 12 bits Coding, Unipolar Output Straight binary Coding, Bipolar Output Input Logic Level, Bit ON ("1") Offset binary, two’s complement ➀ +2.0V to +5.5V Input Logic Level, Bit OFF ("0") 0V to +0.8V Logic Loading Load Input ➁ 1 LSTTL load High (“1”) = hold data Load Input .

DAC-HK12BMC-QL Features

* 12-Bit resolution

* Integral nonlinearity error ±1/2LSB, max.

* Differential nonlinearity error ±3/4LSB, max.

* MIL-STD-883 high-reliability versions available

* Input register

* 3μs fast settling time

* Guaranteed monotonicity over full temp

DAC-HK12BGC-DATEL.pdf

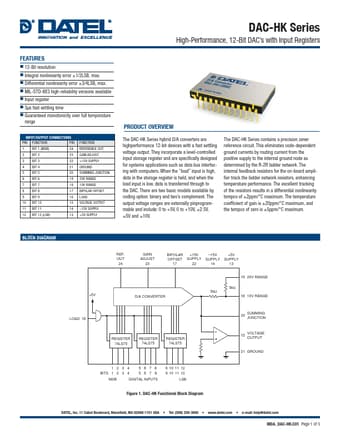

DAC-HK12BMC-QL Datasheet Preview — This datasheet PDF includes multiple part numbers: DAC-HK12BMC-QL, DAC-HK12BGC. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

DAC-HK12BMC-QL, DAC-HK12BGC

Manufacturer:

DATEL

File Size:

192.14 KB

Description:

12-bit dac.

Note:

This datasheet PDF includes multiple part numbers: DAC-HK12BMC-QL, DAC-HK12BGC.
Please refer to the document for exact specifications by model.
