DAC-HK12BMM, DAC-HK12BGC - 12-Bit DAC

The DAC-HK12BMM by DATEL is a 12-Bit DAC. Below is the official datasheet preview.

📥 Download Datasheet

Official preview page of the DAC-HK12BMM 12-Bit DAC datasheet (DATEL).

Datasheet Details

Part number DAC-HK12BMM, DAC-HK12BGC
Manufacturer DATEL
File Size 192.14 KB
Description 12-Bit DAC
Datasheet download datasheet DAC-HK12BGC-DATEL.pdf
Note This datasheet PDF includes multiple part numbers: DAC-HK12BMM, DAC-HK12BGC.
Please refer to the document for exact specifications by model.

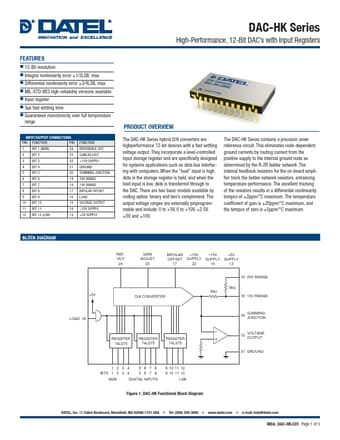

Additional preview pages of the DAC-HK12BMM datasheet.

DAC-HK12BMM Product details

Description

INPUTS Resolution 12 bits Coding, Unipolar Output Straight binary Coding, Bipolar Output Input Logic Level, Bit ON ("1") Offset binary, two’s complement ➀ +2.0V to +5.5V Input Logic Level, Bit OFF ("0") 0V to +0.8V Logic Loading Load Input ➁ 1 LSTTL load High (“1”) = hold data Load Input Loading Low (“0”) = transfer data 3 LSTTL loads PERFORMANCE ➃ Nonlinearity Error, max.±1/2LSB Differential Nonlinearity Error, max.Gain Error, Before Trimming Zero Error, Before Trimming ±3/4LS
