DAC-HK12BME, DAC-HK12BGC 12-Bit DAC

DAC-HK12BME Description

DAC-HK Series High-Performance, 12-Bit DAC’s with Input Registers .
INPUTS Resolution 12 bits Coding, Unipolar Output Straight binary Coding, Bipolar Output Input Logic Level, Bit ON ("1") Offset binary, two’s co.

DAC-HK12BME Features

* 12-Bit resolution
* Integral nonlinearity error ±1/2LSB, max.
* Differential nonlinearity error ±3/4LSB, max.
* MIL-STD-883 high-reliability versions available
* Input register
* 3μs fast settling time
* Guaranteed monotonicity over full temp

DAC-HK12BME Applications

* such as data bus interfacing with computers. When the “load” input is high, data in the storage register is held, and when the load input is low, data is transferred through to the DAC. There are two basic models available by coding option: binary and two’s complement. The output voltage ranges are

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DAC-HK12BME, DAC-HK12BGC. Please refer to the document for exact specifications by model.

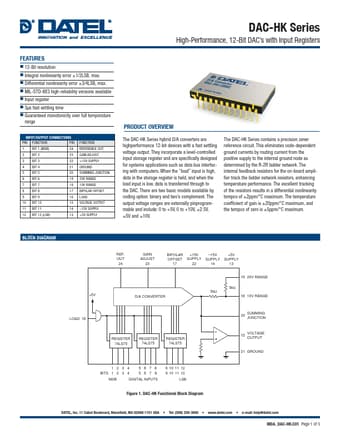

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DAC-HK12BME, DAC-HK12BGC
Manufacturer
DATEL
File Size
192.14 KB
Datasheet
DAC-HK12BGC-DATEL.pdf
Description
12-Bit DAC
Note
This datasheet PDF includes multiple part numbers: DAC-HK12BME, DAC-HK12BGC.
Please refer to the document for exact specifications by model.
