FR1D, FR1A RECTIFIER SPECIALISTS

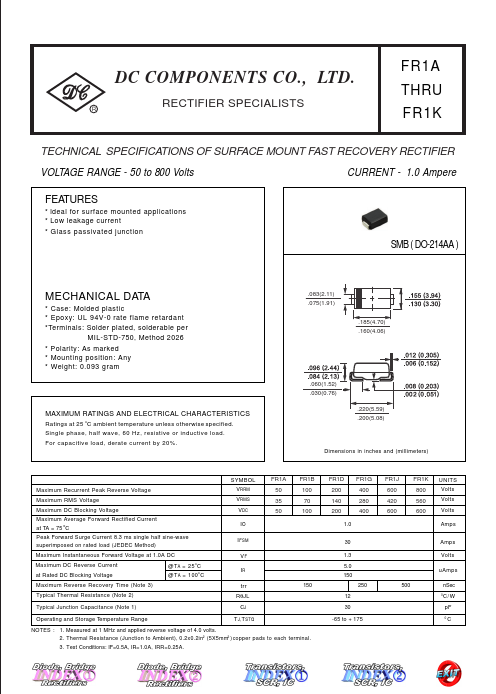

📥 Download Datasheet Datasheet Preview Page 1

Description

DC COMPONENTS CO., LTD.R RECTIFIER SPECIALISTS FR1A THRU FR1K TECHNICAL SPECIFICATIONS OF SURFACE MOUNT FAST RECOVERY RECTIFIER VOLTAGE RANGE - .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: FR1D, FR1A. Please refer to the document for exact specifications by model.

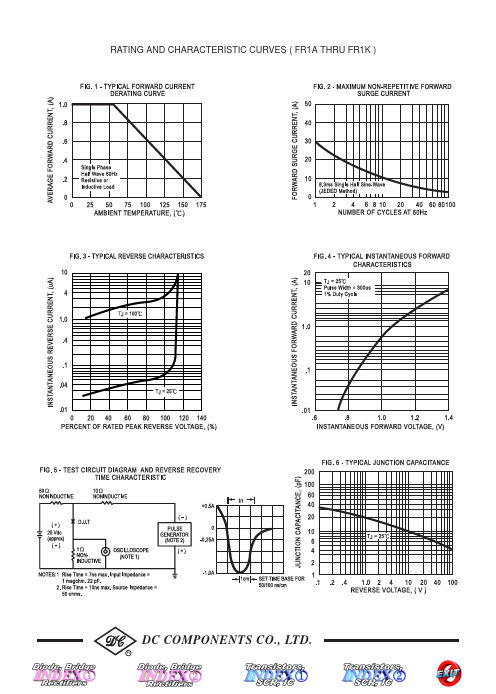

datasheet Preview Page 2

Datasheet Specifications

Part number
FR1D, FR1A
Manufacturer
DC COMPONENTS
File Size
435.38 KB
Datasheet
FR1A-DCCOMPONENTS.pdf
Description
RECTIFIER SPECIALISTS
Note
This datasheet PDF includes multiple part numbers: FR1D, FR1A.
Please refer to the document for exact specifications by model.

Applications

* Low leakage current
* Glass passivated junction SMB ( DO-214AA ) MECHANICAL DATA
* Case: Molded plastic
* Epoxy: UL 94V-0 rate flame retardant
* Terminals: Solder plated, solderable per MIL-STD-750, Method 2026
* Polarity: As marked
* Mounting position: Any
* Weigh
