FR1B - RECTIFIER SPECIALISTS

This page provides the datasheet information for the FR1B, a member of the FR1A RECTIFIER SPECIALISTS family.

Datasheet Summary

Features

  • ldeal for surface mounted.

📥 Download Datasheet

Datasheet preview – FR1B

Datasheet Details

Part number FR1B
Manufacturer DC COMPONENTS
File Size 435.38 KB
Description RECTIFIER SPECIALISTS
Datasheet download datasheet FR1B Datasheet

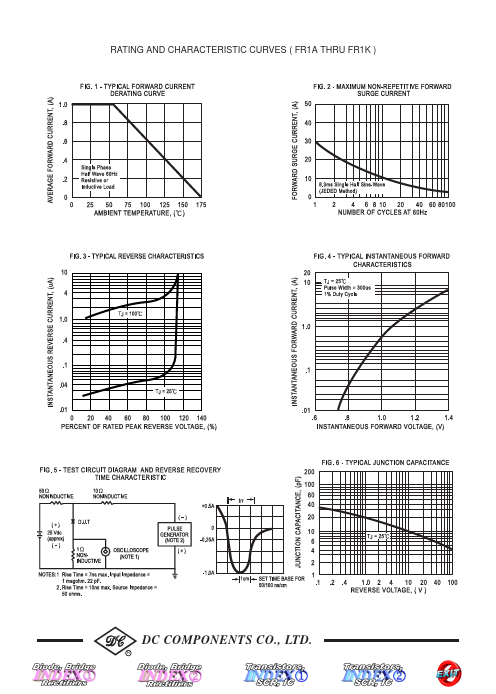

Additional preview pages of the FR1B datasheet.

📁 Similar Datasheet

  • FR1B - 1.0A SURFACE MOUNT GLASS PASSIVATED FAST RECOVERY DIODE (WON-TOP)
  • FR1B - SURFACE MOUNT FAST RECOVERY RECTIFIER (PAN JIT)
  • FR1B - SURFACE MOUNT FAST SWITCHENG RECTIFIER (CHENG-YI)
  • FR1B - SURFACE MOUNT FAST RECOVERY RECTIFIER (HITANO)
  • FR1B - SURFACE MOUNT FAST RECOVERY RECTIFIER (JQC)
  • FR1B - 1.0A SURFACE MOUNT FAST RECOVERY RECTIFIER (SMC Diode)
  • FR1B - Fast Switching Surface Mount Si-Rectifiers (Diotec)
  • FR1B - SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES (Sunmate)
  • FR1B - 1.0A SURFACE MOUNT FAST RECOVERY RECTIFIER (SANGDEST MICROELECTRONICS)
  • FR1B - Surface Mount Fast Recovery Rectifiers (LGE)
Other Datasheets by DC COMPONENTS
  • FR1BFL - FAST RECOVERY RECTIFIER
  • FR101G - TECHNICAL SPECIFICATIONS OF FAST RECOVERY GLASS PASSIVATED RECTIFIER
  • FR102G - TECHNICAL SPECIFICATIONS OF FAST RECOVERY GLASS PASSIVATED RECTIFIER
  • FR103G - TECHNICAL SPECIFICATIONS OF FAST RECOVERY GLASS PASSIVATED RECTIFIER
  • FR104G - TECHNICAL SPECIFICATIONS OF FAST RECOVERY GLASS PASSIVATED RECTIFIER
  • FR105G - FAST RECOVERY GLASS PASSIVATED RECTIFIER
  • FR106G - FAST RECOVERY GLASS PASSIVATED RECTIFIER
  • FR107G - FAST RECOVERY GLASS PASSIVATED RECTIFIER

Full PDF Text Transcription

Click to expand full text

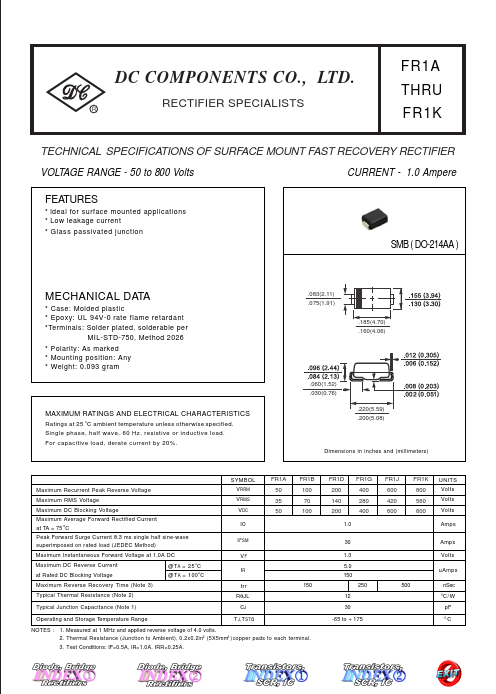

DC COMPONENTS CO., LTD. R RECTIFIER SPECIALISTS FR1A THRU FR1K TECHNICAL SPECIFICATIONS OF SURFACE MOUNT FAST RECOVERY RECTIFIER VOLTAGE RANGE - 50 to 800 Volts CURRENT - 1.0 Ampere FEATURES * ldeal for surface mounted applications * Low leakage current * Glass passivated junction SMB ( DO-214AA ) MECHANICAL DATA * Case: Molded plastic * Epoxy: UL 94V-0 rate flame retardant *Terminals: Solder plated, solderable per MIL-STD-750, Method 2026 * Polarity: As marked * Mounting position: Any * Weight: 0.093 gram MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 oC ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%. .083(2.11) .075(1.91) .185(4.70) .160(4.06) .060(1.52) .
