FR1DFL - FAST RECOVERY RECTIFIER

This page provides the datasheet information for the FR1DFL, a member of the FR1AFL FAST RECOVERY RECTIFIER family.

Datasheet Summary

Features

  • ldeal for surface mounted.

📥 Download Datasheet

Datasheet preview – FR1DFL

Datasheet Details

Part number FR1DFL
Manufacturer DC COMPONENTS
File Size 39.26 KB
Description FAST RECOVERY RECTIFIER
Datasheet download datasheet FR1DFL Datasheet

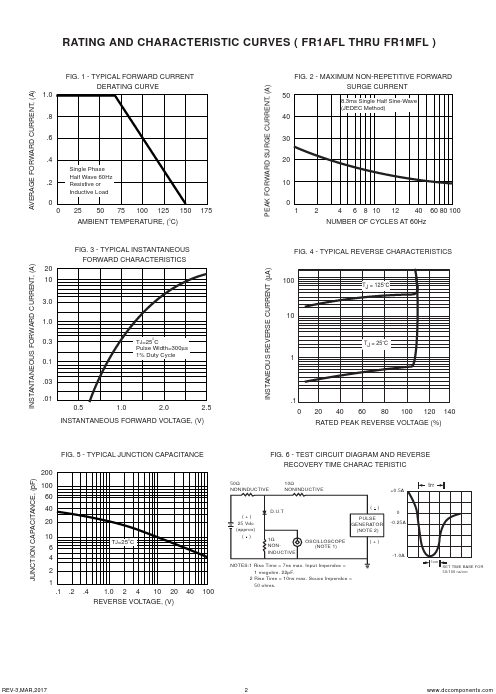

Additional preview pages of the FR1DFL datasheet.

📁 Similar Datasheet

  • FR1DFL - SUFACE MOUNT FAST RECOVERY RECTIFIER DIODES (Sunmate)
  • FR1D - SURFACE MOUNT FAST RECOVERY RECTIFIER (PAN JIT)
  • FR1D - 1.0A SURFACE MOUNT GLASS PASSIVATED FAST RECOVERY DIODE (WON-TOP)
  • FR1D - SURFACE MOUNT FAST SWITCHENG RECTIFIER (CHENG-YI)
  • FR1D - SURFACE MOUNT FAST RECOVERY RECTIFIER (HITANO)
  • FR1D - SURFACE MOUNT FAST RECOVERY RECTIFIER (JQC)
  • FR1D - 1.0A SURFACE MOUNT FAST RECOVERY RECTIFIER (SMC Diode)
  • FR1D - Fast Switching Surface Mount Si-Rectifiers (Diotec)
  • FR1D - SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES (Sunmate)
  • FR1D - 1.0A SURFACE MOUNT FAST RECOVERY RECTIFIER (SANGDEST MICROELECTRONICS)
Other Datasheets by DC COMPONENTS
  • FR1D - RECTIFIER SPECIALISTS
  • FR101G - TECHNICAL SPECIFICATIONS OF FAST RECOVERY GLASS PASSIVATED RECTIFIER
  • FR102G - TECHNICAL SPECIFICATIONS OF FAST RECOVERY GLASS PASSIVATED RECTIFIER
  • FR103G - TECHNICAL SPECIFICATIONS OF FAST RECOVERY GLASS PASSIVATED RECTIFIER
  • FR104G - TECHNICAL SPECIFICATIONS OF FAST RECOVERY GLASS PASSIVATED RECTIFIER
  • FR105G - FAST RECOVERY GLASS PASSIVATED RECTIFIER
  • FR106G - FAST RECOVERY GLASS PASSIVATED RECTIFIER
  • FR107G - FAST RECOVERY GLASS PASSIVATED RECTIFIER

Full PDF Text Transcription

Click to expand full text

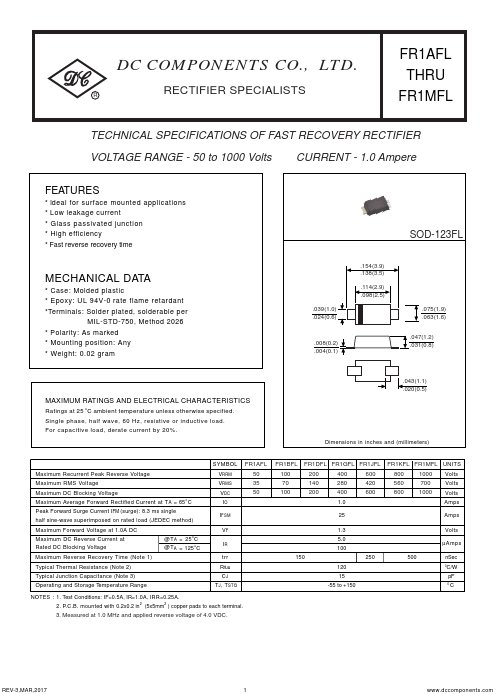

DC COMPONENTS CO., LTD. R RECTIFIER SPECIALISTS FR1AFL THRU FR1MFL TECHNICAL SPECIFICATIONS OF FAST RECOVERY RECTIFIER VOLTAGE RANGE - 50 to 1000 Volts CURRENT - 1.0 Ampere FEATURES * ldeal for surface mounted applications * Low leakage current * Glass passivated junction * High efficiency * Fast reverse recovery time MECHANICAL DATA * Case: Molded plastic * Epoxy: UL 94V-0 rate flame retardant *Terminals: Solder plated, solderable per MIL-STD-750, Method 2026 * Polarity: As marked * Mounting position: Any * Weight: 0.02 gram SOD-123FL .039(1.0) .024(0.6) .154(3.9) .138(3.5) .114(2.9) .098(2.5) .008(0.2) .004(0.1) .075(1.9) .063(1.6) .047(1.2) .031(0.8) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 oC ambient temperature unless otherwise specified.
