S3KBF GENERAL PURPOSE SILICON RECTIFIER

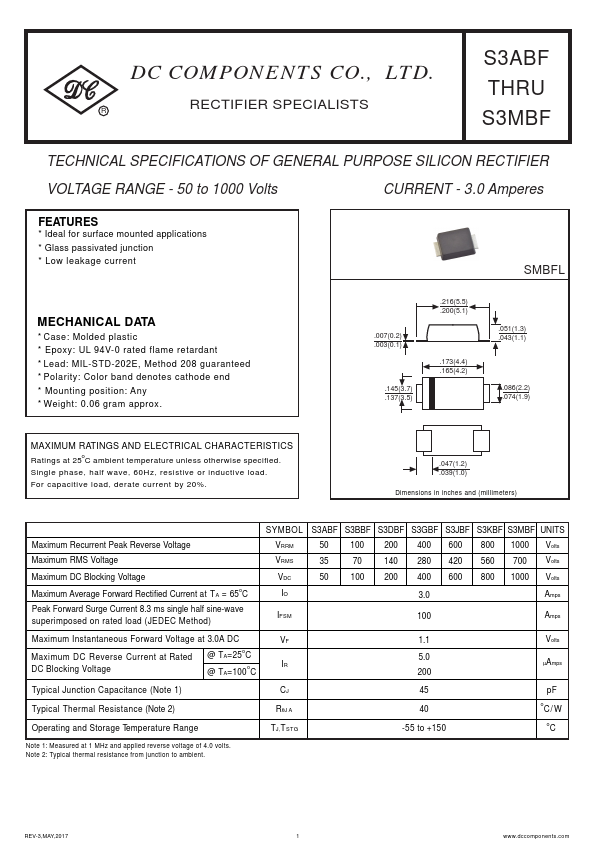

📥 Download Datasheet  Datasheet Preview Page 1

Description

DC COMPONENTS CO., LTD.R RECTIFIER SPECIALISTS S3ABF THRU S3MBF TECHNICAL SPECIFICATIONS OF GENERAL PURPOSE SILICON RECTIFIER VOLTAGE RANGE - 50.

📥 Download Datasheet

Preview of S3KBF PDF

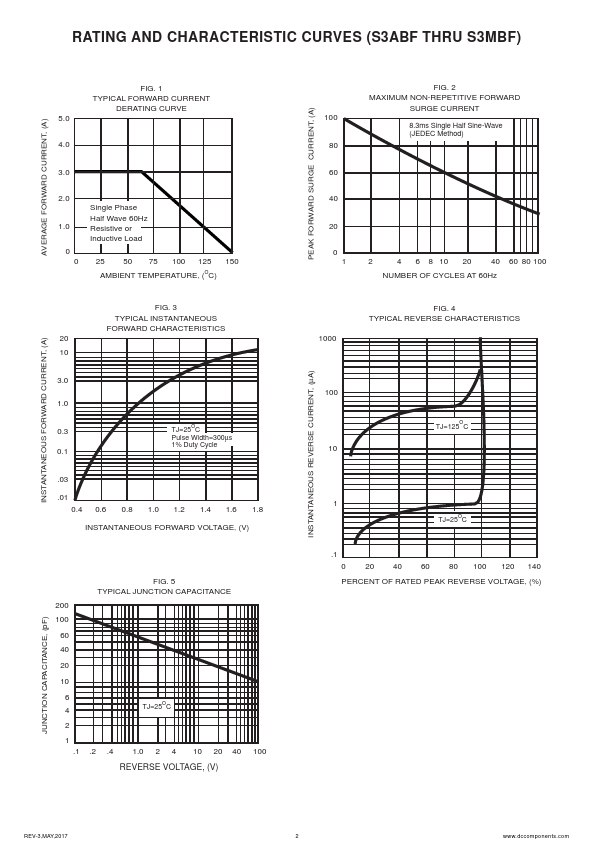

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
S3KBF
Manufacturer
DC COMPONENTS
File Size
33.37 KB
Datasheet
S3KBF-DCCOMPONENTS.pdf
Description
GENERAL PURPOSE SILICON RECTIFIER

Applications

* Glass passivated junction
* Low leakage current SMBFL MECHANICAL DATA
* Case: Molded plastic
* Epoxy: UL 94V-0 rated flame retardant
* Lead: MIL-STD-202E, Method 208 guaranteed
* Polarity: Color band denotes cathode end
* Mounting position: Any
* Weight: 0.06 gram
