US3GBF, US3ABF Datasheet - DC COMPONENTS

US3GBF SURFACE MOUNT ULTRA FAST RECTIFIER

US3GBF Features

* ldeal for surface mounted applications

* Low leakage current

* Glass passivated junction

* High efficiency MECHANICAL DATA

* Case: Molded plastic

* Epoxy: UL 94V-0 rate flame retardant

* Terminals: Solder plated, solderable per MIL-STD-750, Method 2026

* Polarity: As

US3ABF-DCCOMPONENTS.pdf

This datasheet PDF includes multiple part numbers: US3GBF, US3ABF. Please refer to the document for exact specifications by model.

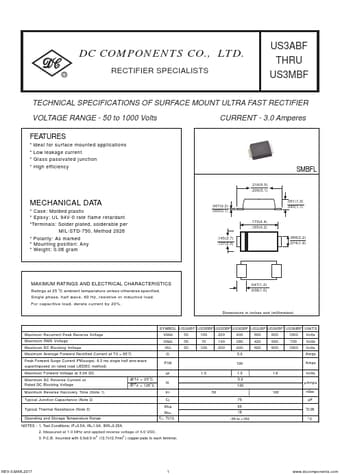

US3GBF Datasheet Preview Page 2 US3GBF Datasheet Preview Page 3

Datasheet Details

Part number:

US3GBF, US3ABF

Manufacturer:

DC COMPONENTS

File Size:

40.64 KB

Description:

Surface mount ultra fast rectifier.

Note:

This datasheet PDF includes multiple part numbers: US3GBF, US3ABF.
Please refer to the document for exact specifications by model.
