US301 - 0.2A SINGLE CHANNEL CURRENT-LIMITED LOAD SWITCH

US301 Description

UNISONIC TECHNOLOGIES CO., LTD US301 Preliminary 0.2A SINGLE CHANNEL CURRENT-LIMITED LOAD SWITCH * .
The UTC US301 is single channel current-limited integrated high-side power switches, optimized for hot-swap applications.

US301 Features

* Input voltage range: 2.7V~5.2V
* Short-circuit protection and fast response time
* Accurate current limiting: 0.4A
* On-resistance:250 mΩ
* Reverse-current blocking
* Soft-start with 0.7ms typical turn-on time
* Over-current and over-voltage protection
* Thermal pro

US301 Applications

* The US301 provides a complete protection solution for application subject to heavy capacitive loads and the prospect of short circuit. The devices have fast short-circuit response time for improving overall system robustness, and offer reverse-current blocking, over-current and over-temperature pro

📥 Download Datasheet

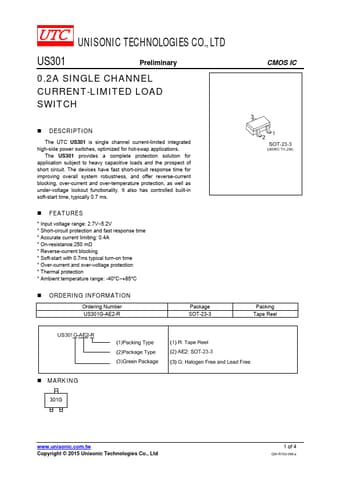

Preview of US301 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
US301
Manufacturer
Unisonic Technologies
File Size
117.44 KB
Datasheet
US301-UnisonicTechnologies.pdf
Description
0.2A SINGLE CHANNEL CURRENT-LIMITED LOAD SWITCH
