US3010 - 5 BIT PROGRAMMABLE SYNCHRONOUS BUCK CONTROLLER IC

Product Overview

UNISEM

Datasheet Details

Part number	US3010
Manufacturer	UNISEM
File Size	74.55 KB
Description	5 BIT PROGRAMMABLE SYNCHRONOUS BUCK CONTROLLER IC
Datasheet	US3010 Datasheet

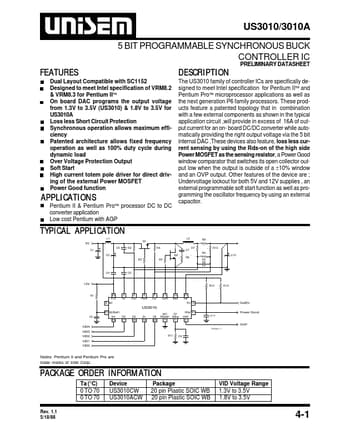

Additional preview pages of the US3010 datasheet.

Product details

Description

The US3010 family of controller ICs are specifically designed to meet Intel specification for Pentium II™ and Pentium Pro™ microprocessor applications as well as the next generation P6 family processors.

Features

Dual Layout Compatible with SC1152 Designed to meet Intel specification of VRM8.2 & VRM8.3 for Pentium II™ On board DAC programs the output voltage from 1.3V to 3.5V (US3010) & 1.8V to 3.5V for US3010A Loss less Short Circuit Protection Synchronous operation allows maximum efficiency Patented architecture allows fixed frequency operation as well as 100% duty cycle during dynamic load Over Voltage Protection Output Soft Start High current totem pole driver for direct driving of the external Power.
