US3076, US3376 DUAL USB HIGH-SIDE POWER SWITCH

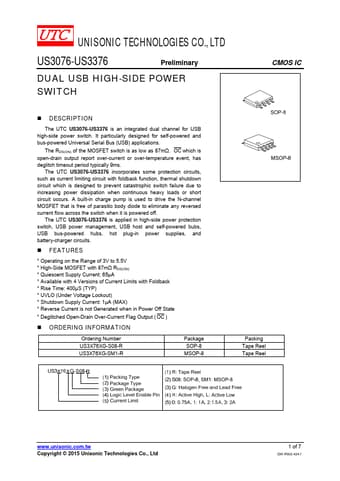

📥 Download Datasheet  Datasheet Preview Page 1

Description

UNISONIC TECHNOLOGIES CO., LTD US3076-US3376 Preliminary DUAL USB HIGH-SIDE POWER SWITCH CMOS IC * .
The UTC US3076-US3376 is an integrated dual channel for USB high-side power switch.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: US3076, US3376. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
US3076, US3376
Manufacturer
Unisonic Technologies
File Size
232.20 KB
Datasheet
US3376-UnisonicTechnologies.pdf
Description
DUAL USB HIGH-SIDE POWER SWITCH
Note
This datasheet PDF includes multiple part numbers: US3076, US3376.
Please refer to the document for exact specifications by model.

Features

* Operating on the Range of 3V to 5.5V
* High-Side MOSFET with 87mΩ RDS(ON)
* Quiescent Supply Current: 65μA
* Available with 4 Versions of Current Limits with Foldback
* Rise Time: 400μS (TYP)
* UVLO (Under Voltage Lockout)
* Shutdown Supply Current: 1μA (MAX)
* Rev

Applications

* The RDS(ON) of the MOSFET switch is as low as 87mΩ. OC which is open-drain output report over-current or over-temperature event, has deglitch timeout period typically 9ms. The UTC US3076-US3376 incorporates some protection circuits, such as current limiting circuit with foldback function, thermal s
