US3005 - 5 BIT PROGRAMMABLE SYNCHRONOUS BUCK CONTROLLER

Product Overview

UNISEM

Datasheet Details

Part number	US3005
Manufacturer	UNISEM
File Size	99.03 KB
Description	5 BIT PROGRAMMABLE SYNCHRONOUS BUCK CONTROLLER
Datasheet	US3005 Datasheet

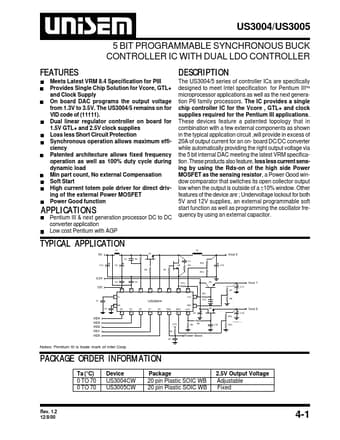

Additional preview pages of the US3005 datasheet.

Product details

Description

The US3004/5 series of controller ICs are specifically designed to meet Intel specification for Pentium III™ microprocessor applications as well as the next generation P6 family processors.

Features

Meets Latest VRM 8.4 Specification for PIII Provides Single Chip Solution for Vcore, GTL+ and Clock Supply On board DAC programs the output voltage from 1.3V to 3.5V. The US3004/5 remains on for VID code of (11111). Dual linear regulator controller on board for 1.5V GTL+ and 2.5V clock supplies Loss less Short Circuit Protection Synchronous operation allows maximum efficiency Patented architecture allows fixed frequency operation as well as 100% duty cycle during dynamic load Min part count, No.
