US3011 - 5 BIT PROGRAMMABLE SYNCHRONOUS BUCK CONTROLLER IC

Product Overview

UNISEM

Datasheet Details

Part number	US3011
Manufacturer	UNISEM
File Size	72.54 KB
Description	5 BIT PROGRAMMABLE SYNCHRONOUS BUCK CONTROLLER IC
Datasheet	US3011 Datasheet

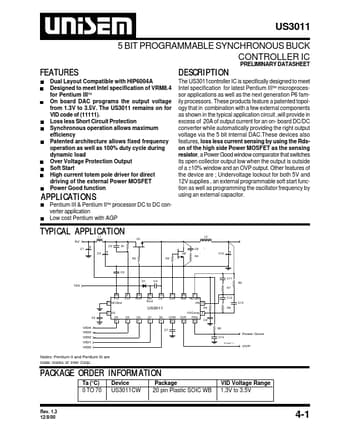

Additional preview pages of the US3011 datasheet.

Product details

Description

The US3011controller IC is specifically designed to meet Intel specification for latest Pentium III™ microprocessor applications as well as the next generation P6 family processors.

Features

Dual Layout Compatible with HIP6004A Designed to meet Intel specification of VRM8.4 for Pentium III™ On board DAC programs the output voltage from 1.3V to 3.5V. The US3011 remains on for VID code of (11111). Loss less Short Circuit Protection Synchronous operation allows maximum efficiency Patented architecture allows fixed frequency operation as well as 100% duty cycle during dynamic load Over Voltage Protection Output Soft Start High current totem pole driver for direct driving of the external.
