PM05S015A Datasheet - DELTA

PM05S015A, high efficiency switching regulator

PM05S Series SIP3, Single Output, Switching Regulator 0.5A, Package .

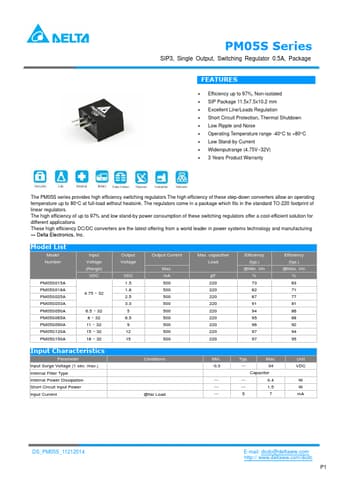

datasheet Preview Page 1 from Datasheet4u.com

PM05S015A-DELTA.pdf

PM05S015A Datasheet Preview — Preview of PM05S015A PDF

Datasheet Details

Part number:

PM05S015A

Manufacturer:

DELTA

File Size:

411.50 KB

Description:

high efficiency switching regulator

Features

* Efficiency up to 97%, Non-isolated
* SIP Package 11.5x7.5x10.2 mm
* Excellent Line/Loads Regulation
* Short Circuit Protection, Thermal Shutdown
* Low Ripple and Noise
* Operating Temperature range -40°C to +80°C
* Low Stand-by Current
* Wideinputrange (4.75V~32V)

Applications

* These high efficiency DC/DC converters are the latest offering from a world leader in power systems technology and manufacturing ― Delta Electronics, Inc. . Model List Model Number PM05S015A PM05S018A PM05S025A PM05S033A PM05S050A PM05S065A PM05S090A PM05S120A PM05S150A Input Voltage (Range) VDC 4.
