PM033-230-8025B-4

AC Fans and Blowers

PM033-230-8025B-4 Features

* Size: 80 x 80 x 25 mm (3.2” x 3.2” x 1.0”) Airflow: 33 CFM Weight: 200 grams (8 oz) Noise: 33 dBa (avg.) Lead Wire: AWG22 Impeller: Reinforced Plastic (94V-0) Frame: Aluminum Alloy Bearings: Ball Sleeve Dimensions

* inches mm UL E101153 Air Flow vs. Air Pressure .25 CUL E10115 .20 Static

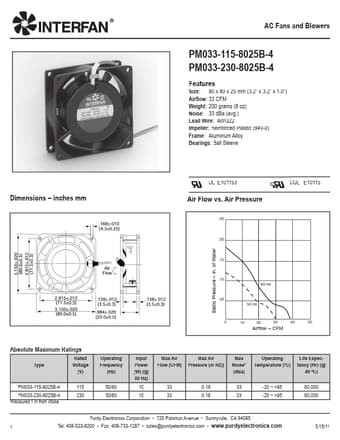

PM033-230-8025B-4 Datasheet (745.25 KB)

Preview of PM033-230-8025B-4 PDF

Datasheet Details

Part number:

PM033-230-8025B-4

Manufacturer:

Purdy Electronics

File Size:

745.25 KB

Description:

Ac fans and blowers.
