PM082-24D-4B, PM082-12D-4B DC Fans and Blowers

Purdy Electronics

Description

4.705±.020 (119.5±0.5) 4.126±.012 (104.8±0.3) Static Pressure (inches H2O) Dimensions * inches (mm) .169±.010 (4.3±0.25) Air Flow 4.126±.01.

📥 Download Datasheet

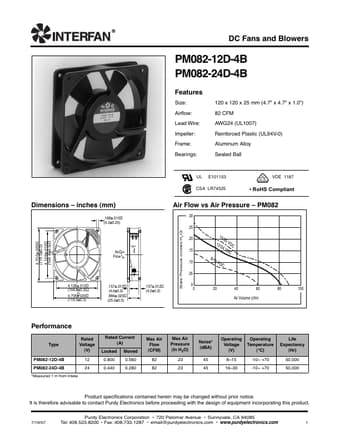

PM082-24D-4B Datasheet Preview — This datasheet PDF includes multiple part numbers: PM082-24D-4B, PM082-12D-4B. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: PM082-24D-4B, PM082-12D-4B
Manufacturer: Purdy Electronics
File Size: 58.99 KB
Datasheet: PM082-12D-4B-PurdyElectronics.pdf
Description: DC Fans and Blowers
Note: This datasheet PDF includes multiple part numbers: PM082-24D-4B, PM082-12D-4B.
Please refer to the document for exact specifications by model.

Features

* Size: Airﬂow: Lead Wire: Impeller: Frame: Bearings: 120 x 120 x 25 mm (4.7" x 4.7" x 1.0") 82 CFM AWG24 (UL1007) Reinforced Plastic (UL94V-0) Aluminum Alloy Sealed Ball UL E101153 CSA LR74525 DVE VDE 1187
* RoHS Compliant .157±.012 (4.0±0.3) Air Flow vs Air Pressure
* PM082 .30
