* Size: Airflow: Lead Wire: Impeller: Frame: Bearings: 120 x 120 x 25 mm (4.7" x 4.7" x 1.0") 82 CFM AWG24 (UL1007) Reinforced Plastic (UL94V-0) Aluminum Alloy Sealed Ball UL E101153 CSA LR74525 DVE VDE 1187
* RoHS Compliant .157±.012 (4.0±0.3) Air Flow vs Air Pressure
* PM082 .30

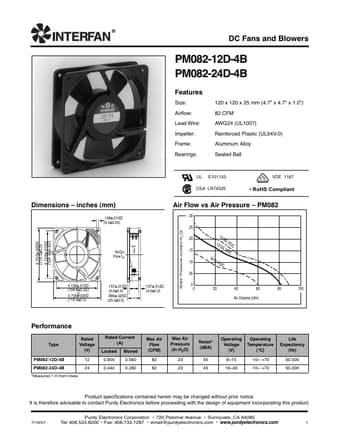

PM082-12D-4B Datasheet (58.99 KB)
PM082-12D-4B
Purdy Electronics
58.99 KB
Dc fans and blowers.
4.705±.020 (119.5±0.5) 4.126±.012 (104.8±0.3) Static Pressure (inches H2O)
Dimensions
* inches (mm)
.169±.010 (4.3±0.25)
Air Flow
4.126±.01.
